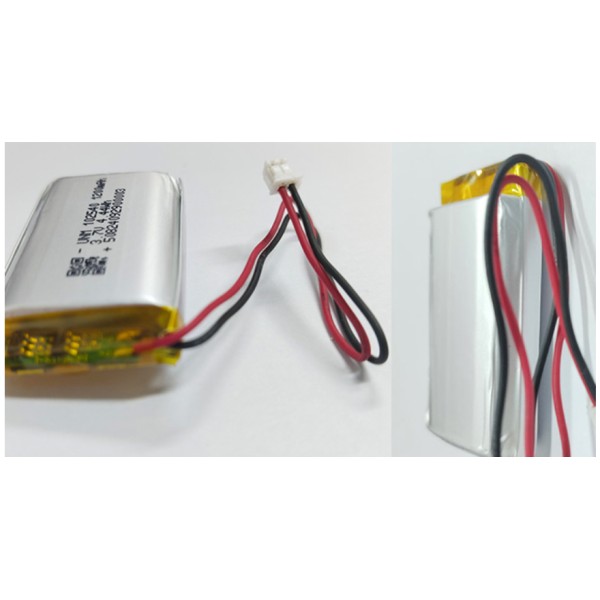

2C Fast Charge Lithium Polymer Battery 102540 3.7V 1200mAh LiPo Battery For Medical Devices
102540 LiPo Battery Overview
The 2C Fast Charge Lithium Polymer Battery 102540 is a high-performance rechargeable battery specifically designed for medical products. With its compact form factor, efficient energy density, and rapid 2C charge rate, this LiPo battery ensures reliable power for medical devices that require consistent and fast energy delivery. The 1200mAh capacity offers long-lasting performance, making it ideal for continuous operation in medical applications.
102540 LiPo Battery Key Features
The 2C Fast Charge Lithium Polymer Battery 102540 is a high-performance rechargeable battery specifically designed for medical products. With its compact form factor, efficient energy density, and rapid 2C charge rate, this LiPo battery ensures reliable power for medical devices that require consistent and fast energy delivery. The 1200mAh capacity offers long-lasting performance, making it ideal for continuous operation in medical applications.
Compact and Lightweight Design: The 102540 size (10mm × 25mm × 42mm) allows easy integration into compact medical and wearable devices.
High Capacity 1200mAh: Provides long-lasting power for portable medical devices and continuous monitoring systems.
Stable 3.7V Output: Ensures consistent voltage output for accurate and reliable device performance.
2C Fast Charging: Supports rapid charging, reducing downtime and improving device availability in critical use scenarios.
102540 LiPo Battery Performance Advantages
The 2C Fast Charge Lithium Polymer Battery 102540 is a high-performance rechargeable battery specifically designed for medical products. With its compact form factor, efficient energy density, and rapid 2C charge rate, this LiPo battery ensures reliable power for medical devices that require consistent and fast energy delivery. The 1200mAh capacity offers long-lasting performance, making it ideal for continuous operation in medical applications.
Reliable Medical Power Supply: Stable output suitable for diagnostic and monitoring equipment.
Eco-Friendly Rechargeable Solution: Reduces battery waste and supports sustainable energy usage.
Wide Device Compatibility: Suitable for wearable devices, portable medical instruments, and healthcare electronics.
102540 LiPo Battery Technical Parameters
Basic Parameters
Battery Type
Lithium Polymer Battery
Model Number
UNM 102540
Nominal Voltage
3.7V
Capacity
1200mAh (Min) | 1250mAh (Typ)
Cell Energy
4.44Wh
Cell Chemistry
LiCoO₂ / NCM (Customizable)
Cell Dimensions (Max)
10.0 × 25.0 × 40.0 mm
Pack Dimensions (Max)
10.0 × 25.0 × 42.0 mm
Weight
Approx. 18.0g
Battery Pack Internal Impedance
≤ 180 mΩ
Shipment Voltage
3.85–4.00V (Adjustable upon request)
Charge & Discharge Parameters
Max Charge Voltage
4.2V
Standard Charge Current
0.2C (240mA) to 4.2V, CCCV Mode
Max Charge Current
1.0C (1200mA) | Customizable
Discharge Cut-off Voltage
3.0V
Standard Discharge Current
0.2C (240mA)
Max Continuous Discharge Current
1.0C (1200mA) | Customizable
Operating Temperature
Charge: 0–45 °C | Discharge: -20–60 °C

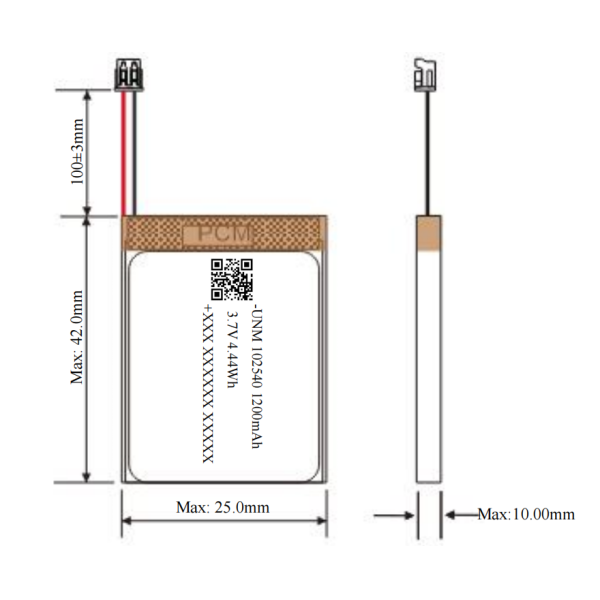

102540 LiPo Battery Dimension Figure
Max. Cell Dimensions: 10.0 × 25.0 × 40.0mm
Plug wire: JST-ZHR-2P | UL3302AWG26 | 100±3mm
Max. Pack Dimensions: 10.0 × 25.0 × 42.0mm
PCM Protection: DM5269-DAAT+8205
102540 LiPo Battery Applications
The 102540 3.7V 1200mAh LiPo battery perfectly combines high energy density, fast charging, and long-lasting durability. Whether used in medical devices, portable health monitoring equipment, or wearable health trackers, its superior performance and compact design make it the ideal choice.
Custom configurations, including PCM/BMS protection circuits, connectors, and cable options, are available to ensure safe integration into your specific product requirements.
Quality & Safety Certifications
All UNEMETECH rechargeable lithium polymer batteries undergo strict quality control and comply with international safety & transportation standards, ensuring safe and reliable performance worldwide.

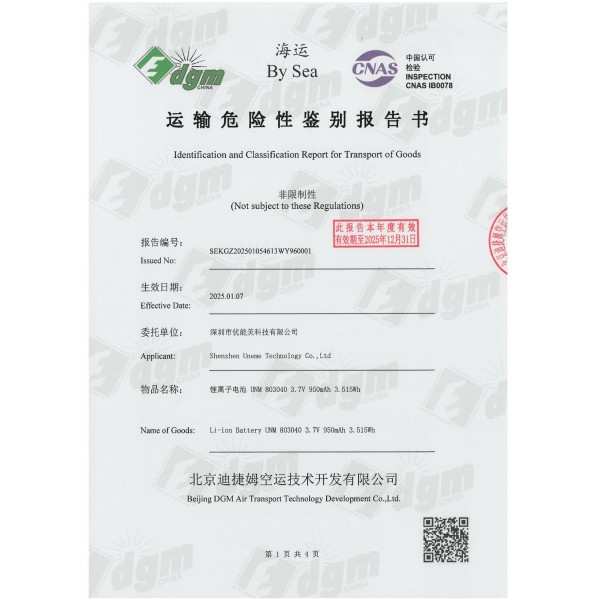

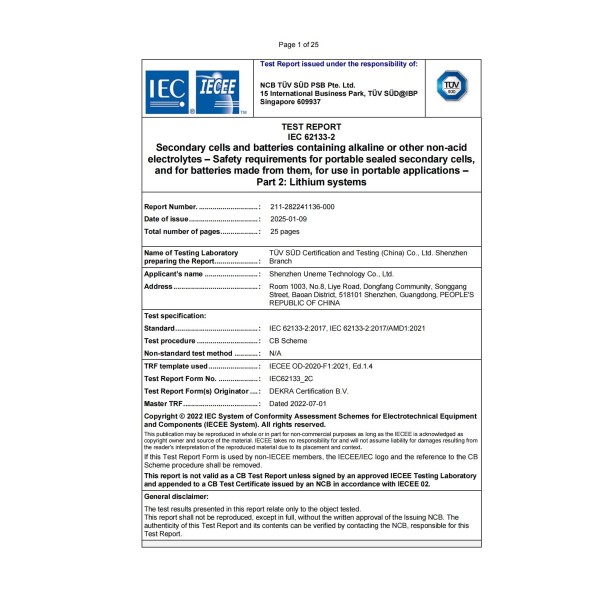

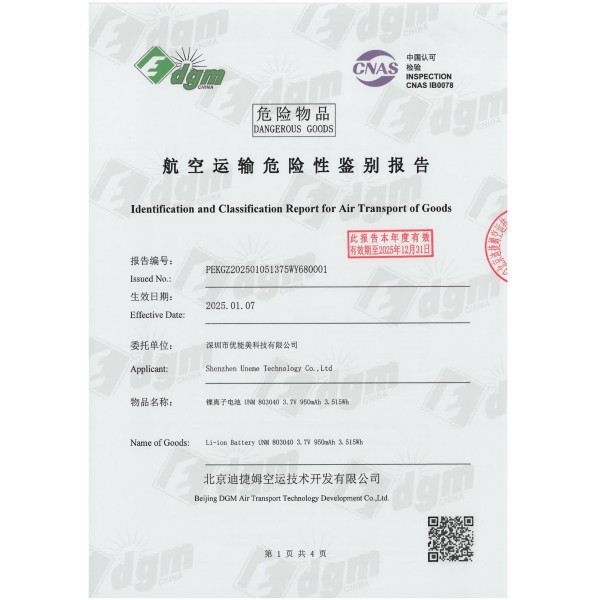

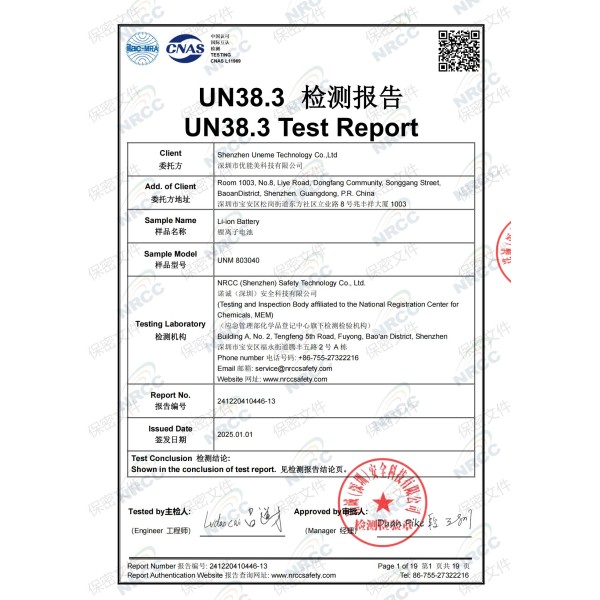

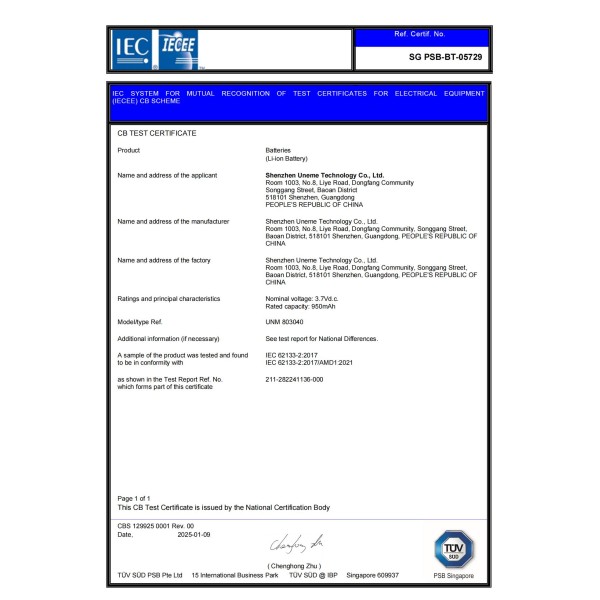

Depending on project requirements and target market regulations, we can provide certification documents such as CB, IEC 62133, UN38.3, MSDS, KC, PSE, BSMI, UL, RCM, CE, REACH, and RoHs 2.0 test reports, and other compliance documentation as required.
Typical Customer Feedback
“We've partnered with UNEMETECH for our portable medical device project. The battery's stability significantly improved our product reliability.”
— Product Development Manager, Medical Device Manufacturer
Custom LiPo Battery Solutions
UNEMETECH provides customized LiPo battery solutions for medical devices, wearable devices, portable electronics, IoT equipment, and other battery-powered applications. Optional PCM/BMS protection circuits, connectors, wire lengths, labels, and battery pack assemblies can be configured according to your project requirements.
Whether you require prototype samples or volume production, our engineering team can support your battery customization needs with reliable manufacturing and technical assistance.
